CDM Uninstaller Guide

Running the application

To run the application, simply double click on the .exe file.

Removing a driver

The figure below shows the window displayed upon running the application. The Vendor ID and Product ID text boxes allow the user to enter a 4 character hex value specifying the device that they wish to remove. All installed device drivers can be viewed from within the Windows Device Manager. The USB-COM devices use the FTDI default Vendor ID (0x0403). Depending on the specific model of USB-COM, valid Product IDs are: 0x6001, 0x6010 and 0x6011.

To remove a device it must be added into the device window; any number of devices can be specified within this window although they all must have a unique Vendor ID and Product ID combination. TITAN recommends to enter all three Product IDs. To remove the device(s) click on the ‘Remove Devices’ button.

The ‘Remove’ button will remove the currently selected item from the device window and the ‘Clear’ button will remove all the devices from the device window.

A message box will confirm successful removal from the system and the device will be removed from the device window. To create an uninstall log file, check ‘Generate uninstall log file’ prior to removing the device. This will create a text file outlining all operations that were attempted during the removal process that will be saved in the same directory as the .exe file.


Error Messages

If there are no devices specified within the device window the following message will appear. Make sure that at least one device has been specified within the window by using the ‘Add’ button.

If after attempting to remove a device the application was unable to find any devices matching the Vendor ID and Product ID the following message box will appear. In this situation make sure that the details that you have entered are indeed correct by checking with the windows device manager.

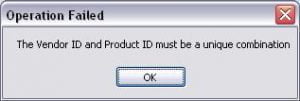

The Vendor ID and Product ID must be a unique combination, if an attempt is made to add the same device twice the following message box will appear.
